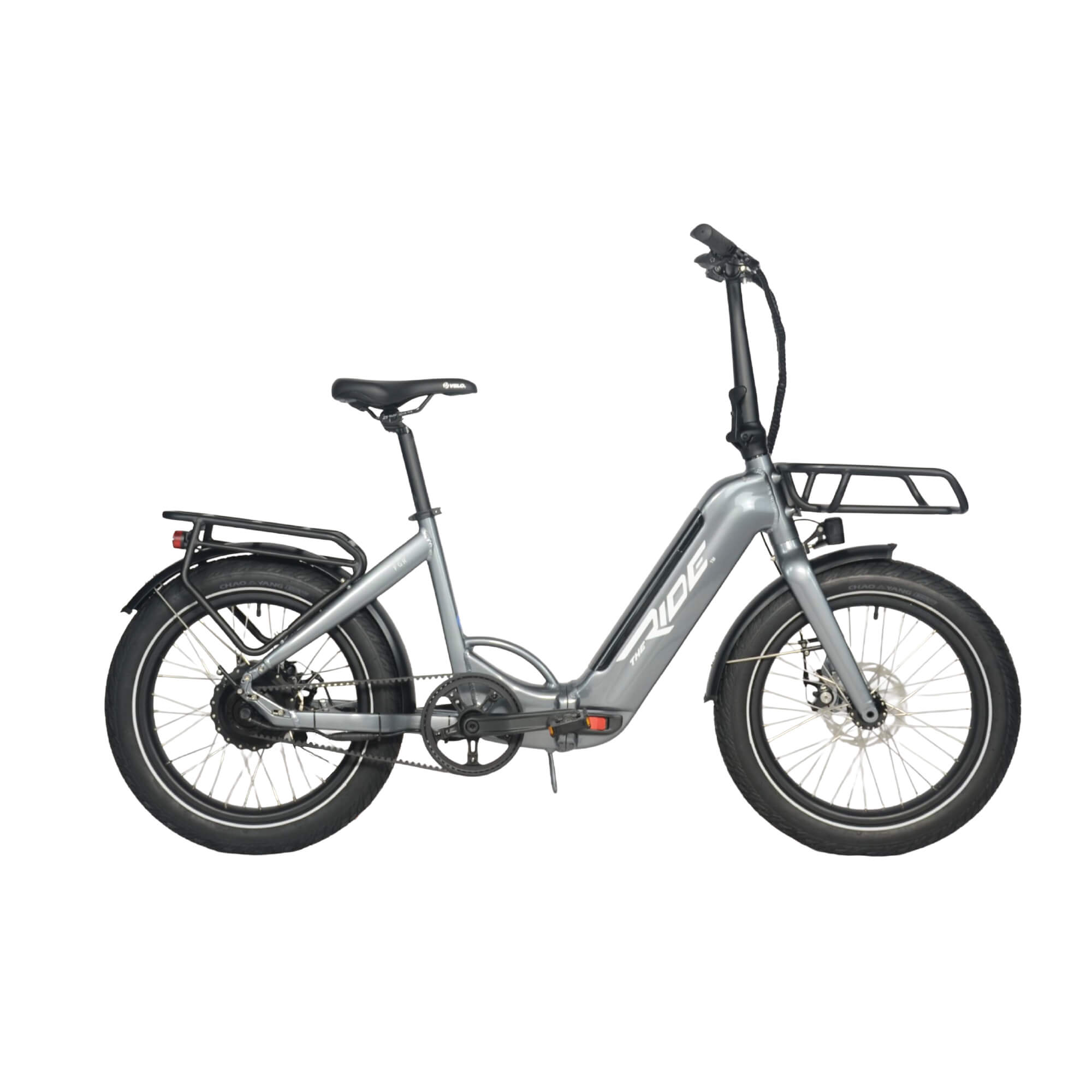

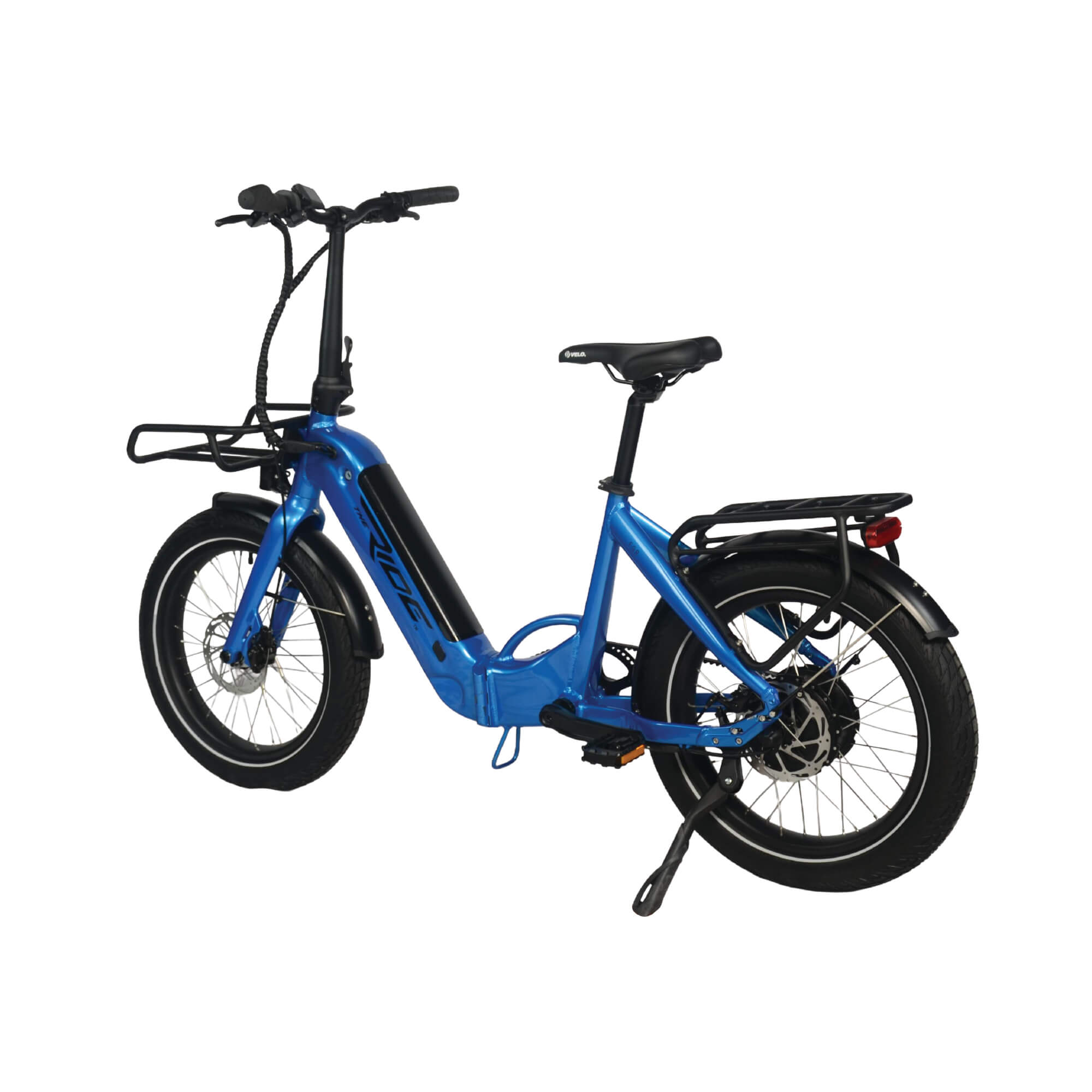

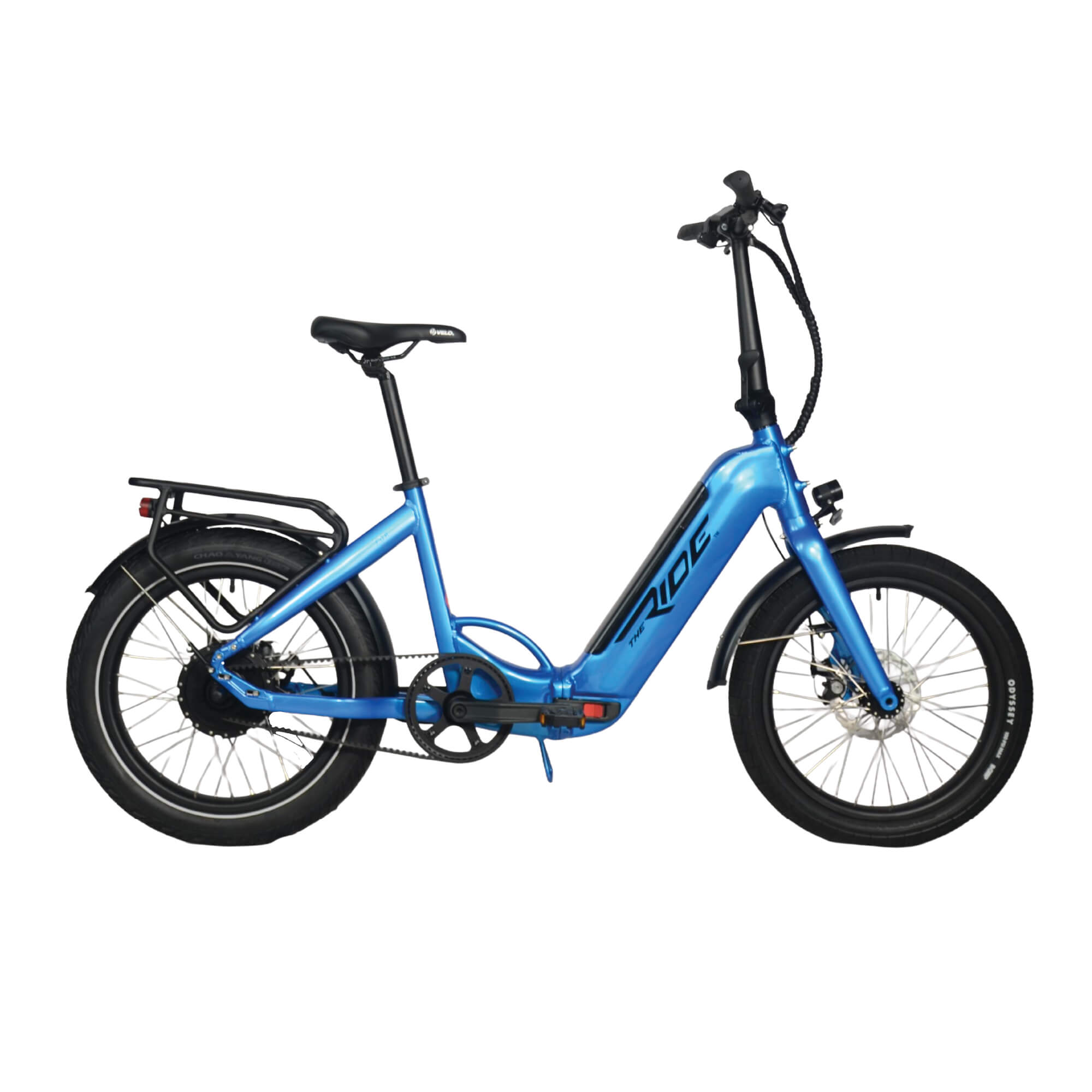

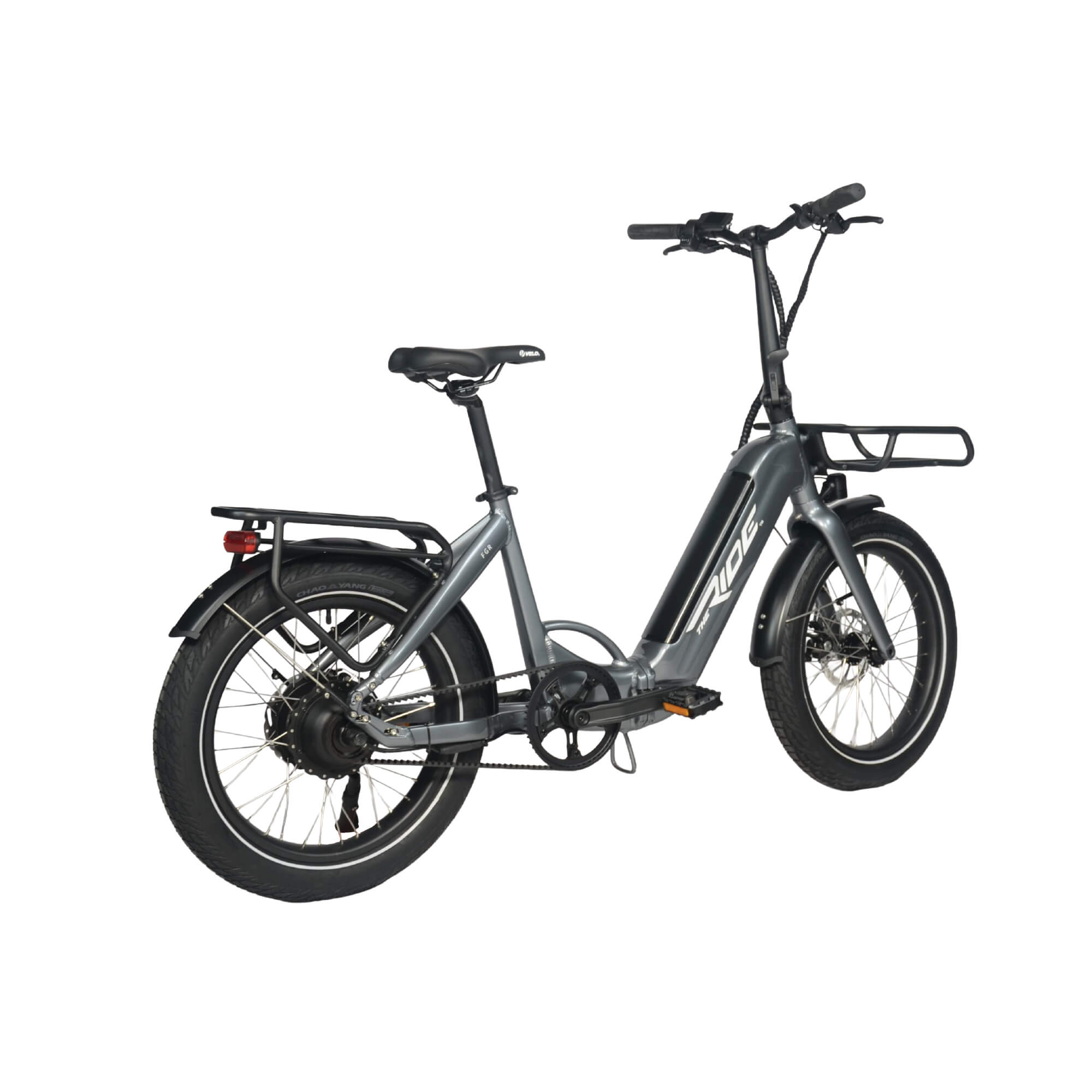

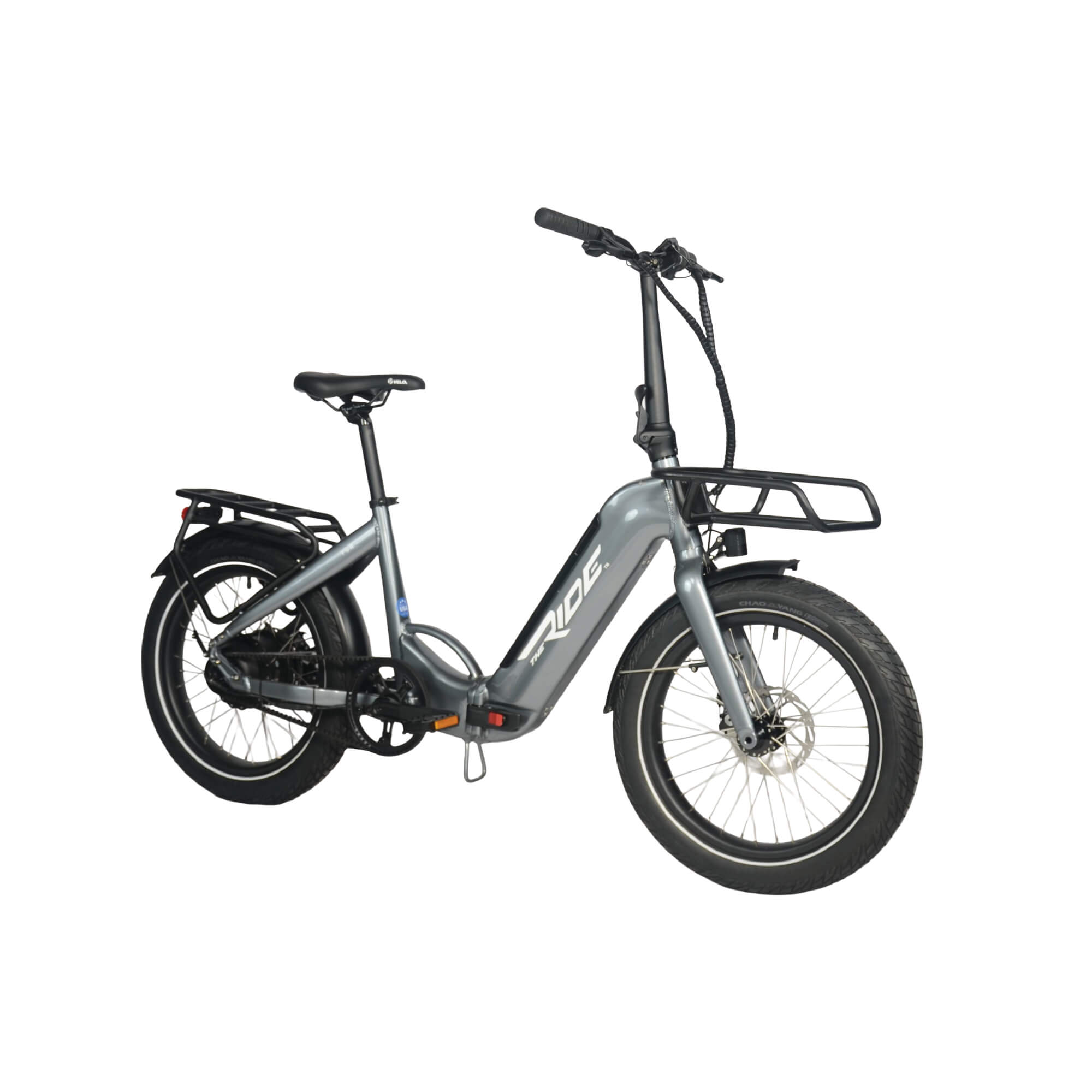

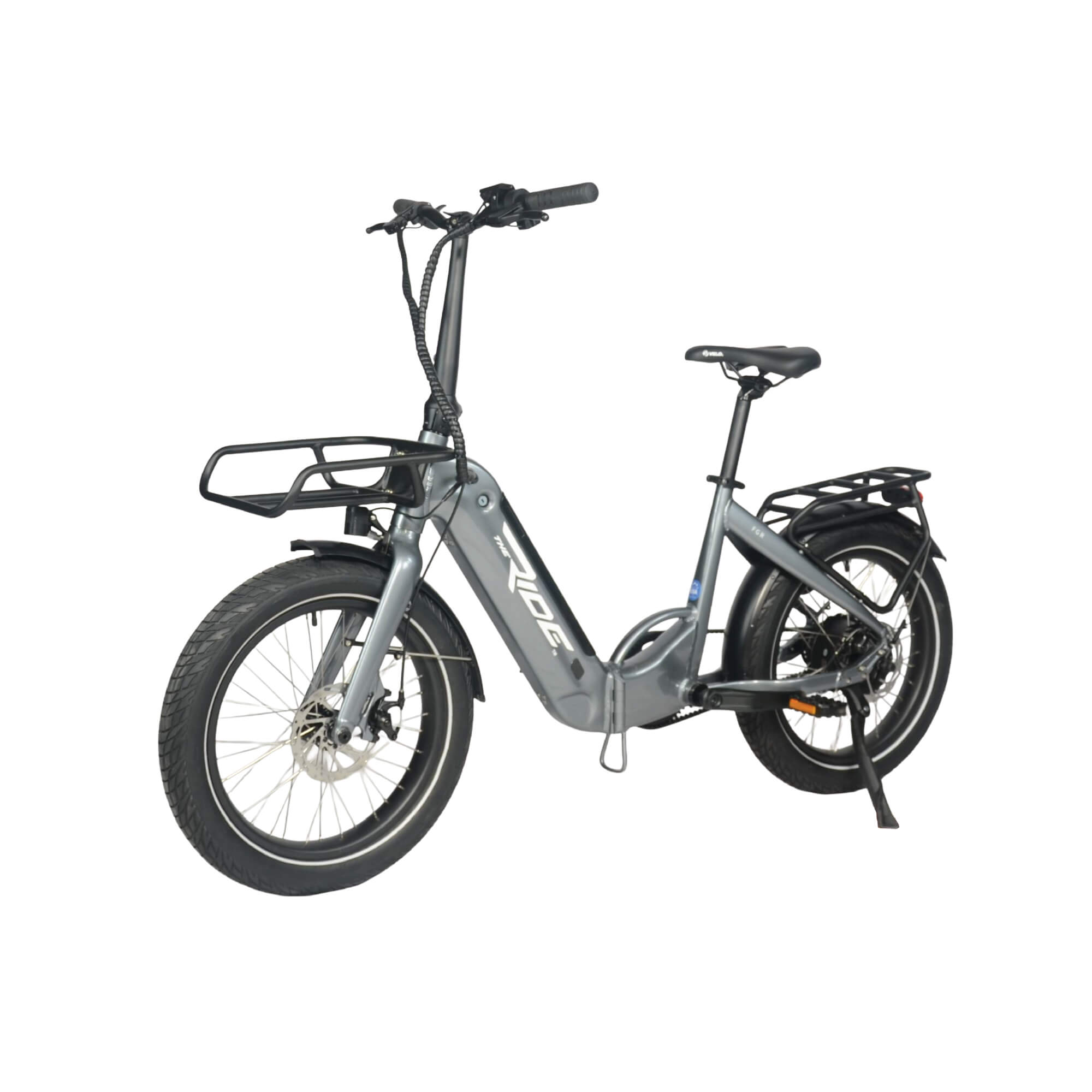

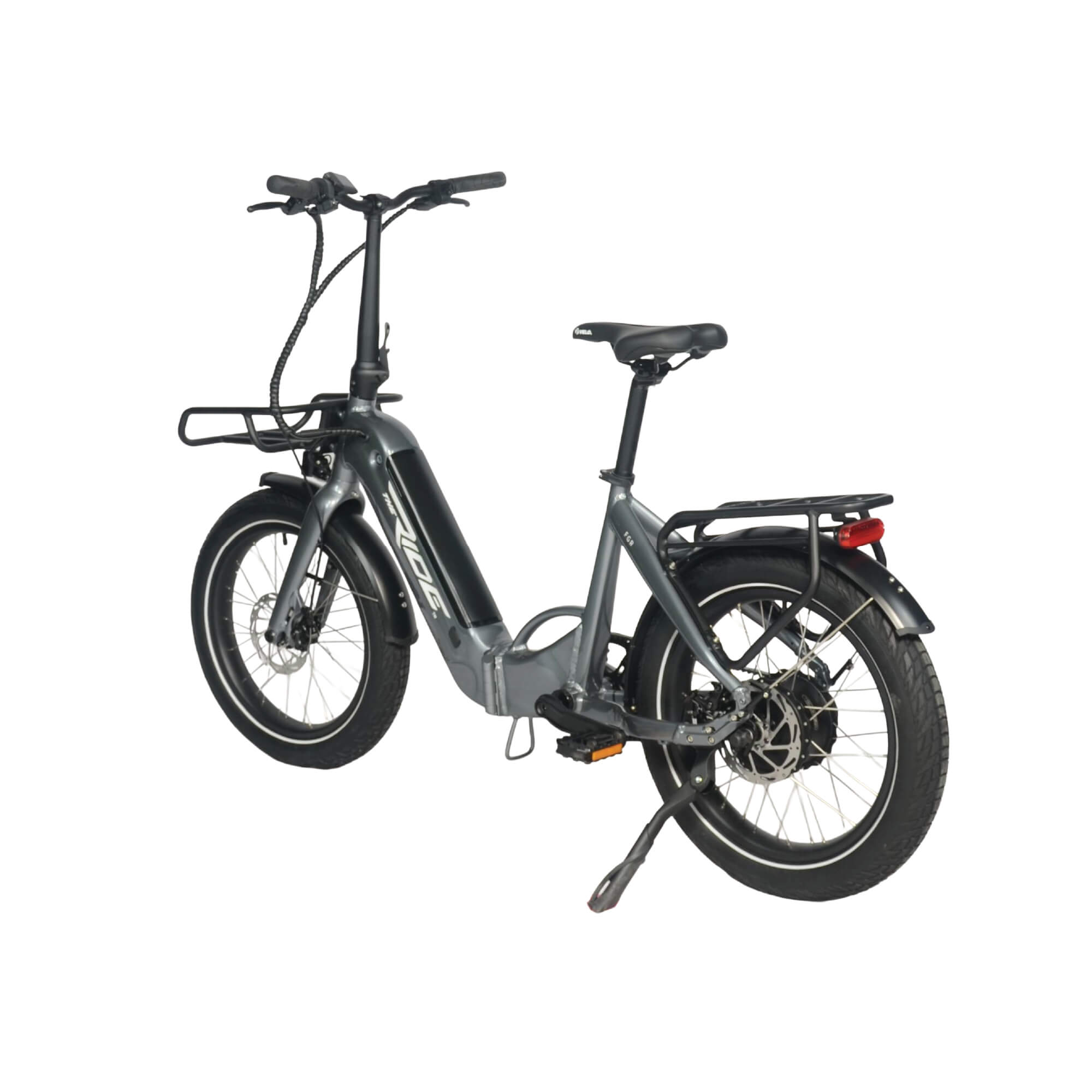

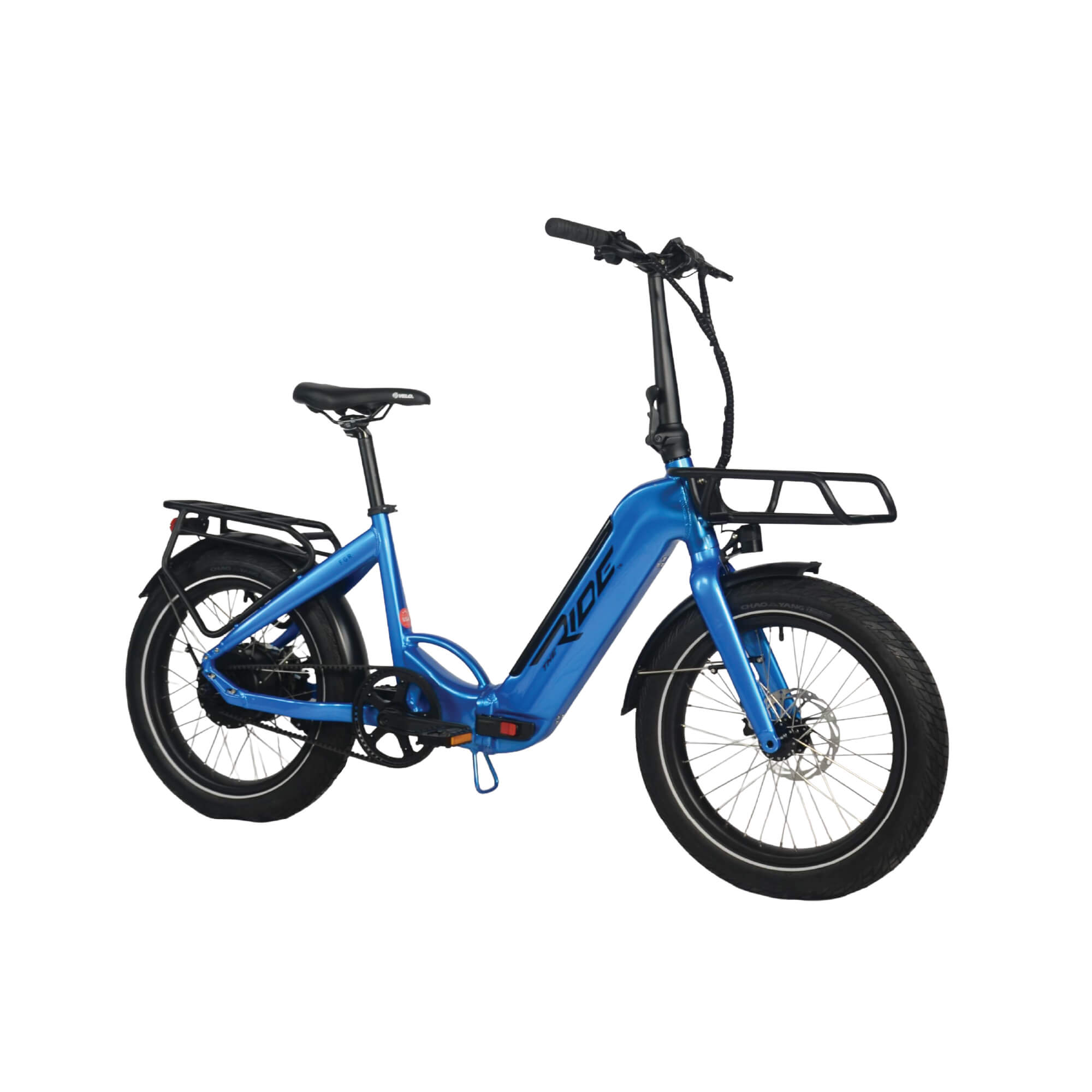

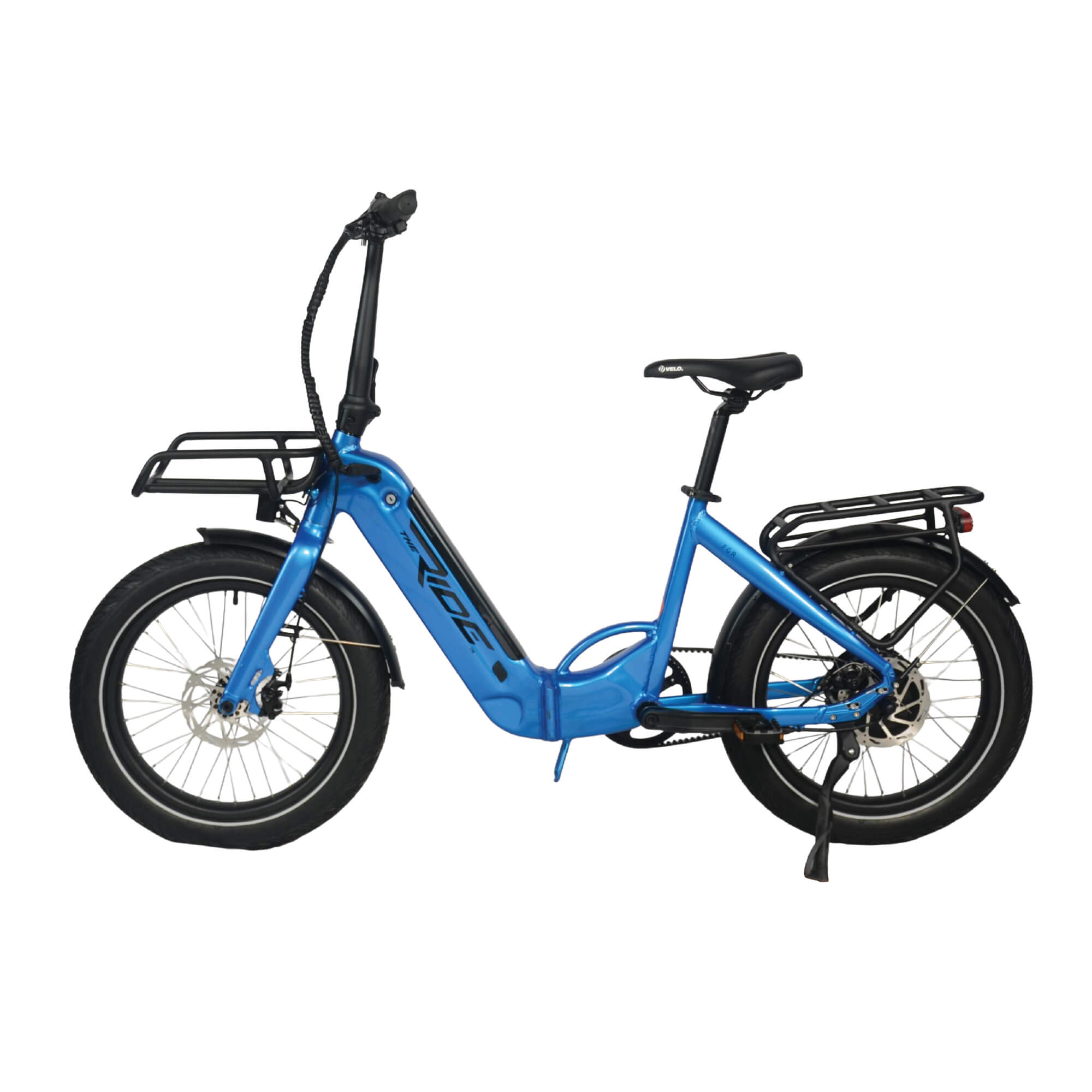

Folding Bikes: FGR X1
The RIDE Bikes FOLDING Series is purposefully designed for the small and mighty Ride. Pick the Folder when space is tight, but your life needs to stay in motion. You roll out with full power assist, then fold down for apartments, RVs, trains, and car trunks. It is simple to lift, stash, and charge anywhere, so your last mile becomes the best part of the trip.
RIDE COMFORT FIT- Sliding geometry to fit rider height of 5'1" to 6'4"
Class 2 System- with Regional & Rider Regulatory & Custom Comfort Settings
- 20" x 3.0"- Urban Tread
- Belt Drive- Carbon
- 740W with Max Power 1055W, 77Nm, Speed Ratio 1:5
- 60+ mile Range
- Cable Disk Brakes w/180mm Front/Rear Rotor
SPECIFICATIONS
| Gear | 3 Speed CVT- Step Thru |
| Rider Fit | RIDE COMFORT FIT- Sliding geometry to fit rider height of 5'1" to 6'4" |
| Class Settings | Class 2 System- with Regional & Rider Regulatory & Custom Comfort Settings |
| Tire Size & Style | 20" x 3.0"- Urban Tread |
| Feature | Belt Drive- Carbon |
| Motor | 740W with Max Power 1055W, 77Nm, Speed Ratio 1:5 |
| Battery | 48V 12.8Ah, 3200mA, 65 Cells, UART, UL2271/2849 Certified |
| Range | 60+ mile Range |

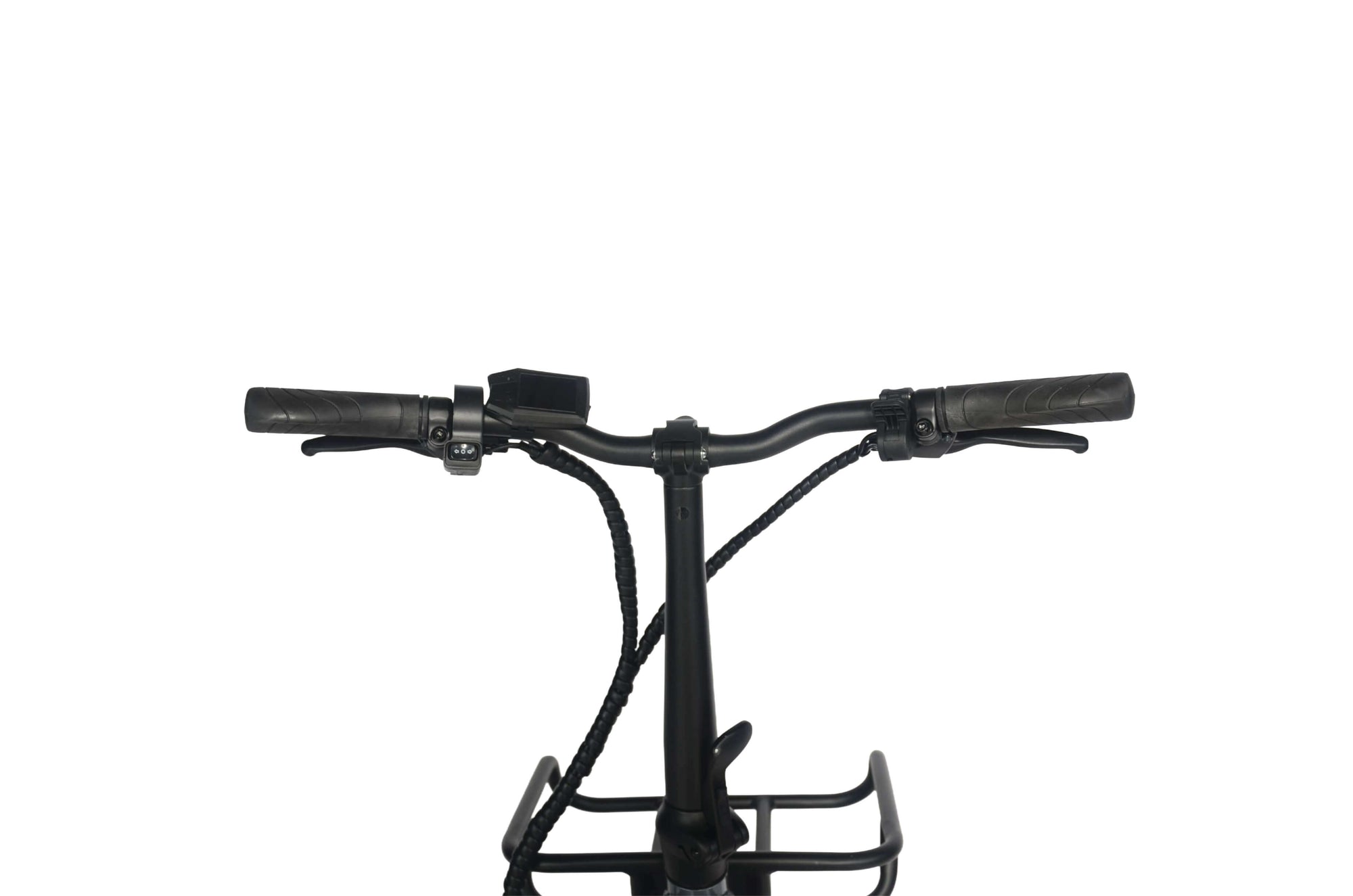

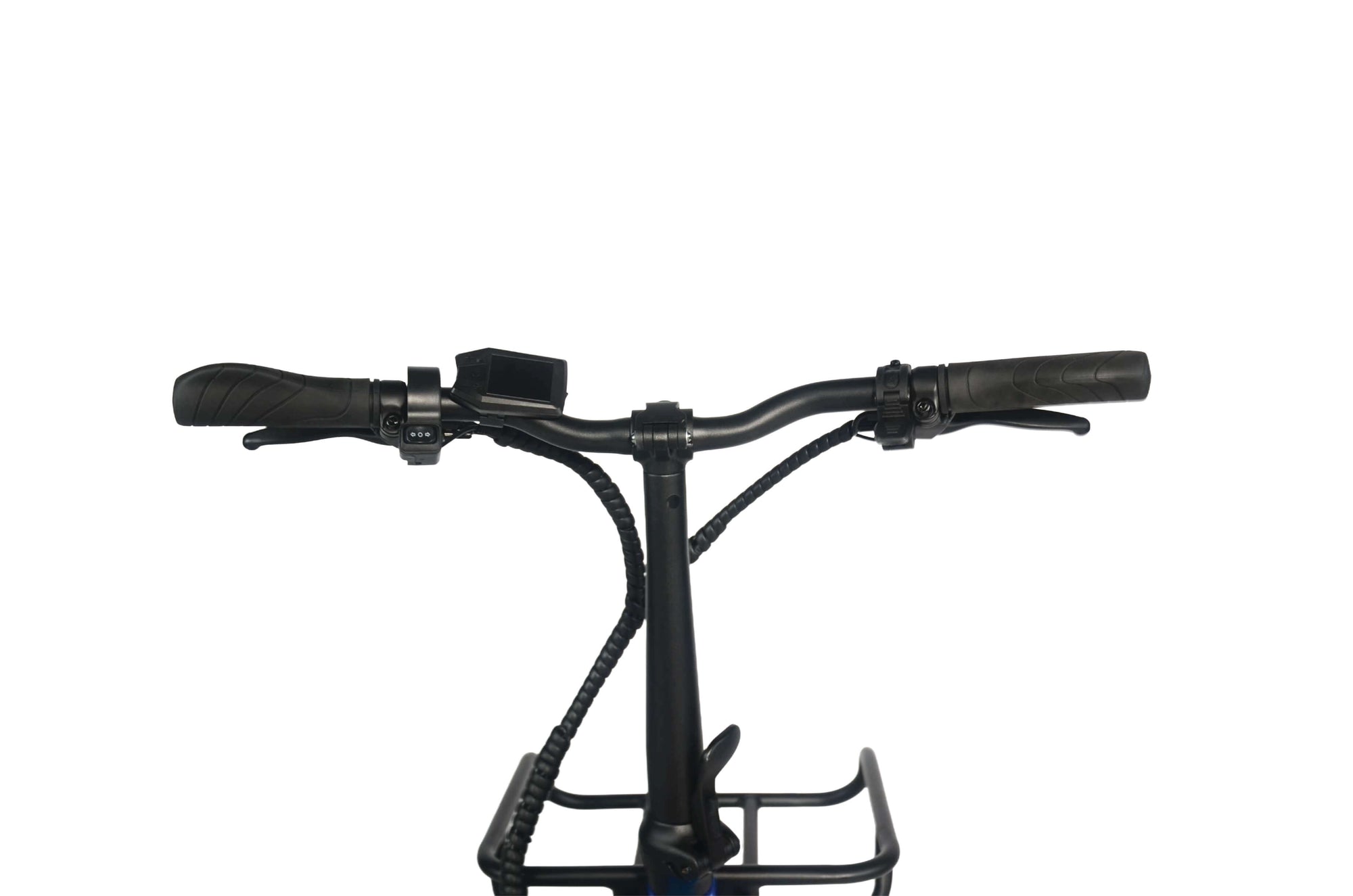

| Handlebar | eBliss- 660mm Wide, 9° Sweep Back, 45mm Rise, MTB-AL 345BT, Aluminum, Black Ano |
| Stem | eBliss- 4-Bolt 31.8mm, Foldable , Aluminum, Black Ano |
| Grips | Locking w/Closed End, Black |
| Saddle | eBliss Comfort, 265mm x 195mm, VL-6472, Leather, CroMo Rails, Black |
| Seat Clamp | eBliss- quick released, Φ35.0*Φ33.8 Aluminum, AT-101N+SQR-115N, Black Ano |
| Seat Post | eBliss-30.9mm, 400mm, Bonded Head, Aluminum, SP-C212, Black Ano |
| Brakes | Mechanical- TEKTRO MD-M300, w/Motor Cut-Off, 180mm Rotor |
| Crank Set | eBliss S-E33165mm, 4 Bolt, w/Chain Guard, Aluminium, Black Ano |
| Bottom Bracket | Dual Sensor, Cadence & Torque Sesnor, LDS BBST1, BBTS3PSD, UL2840 Certified |

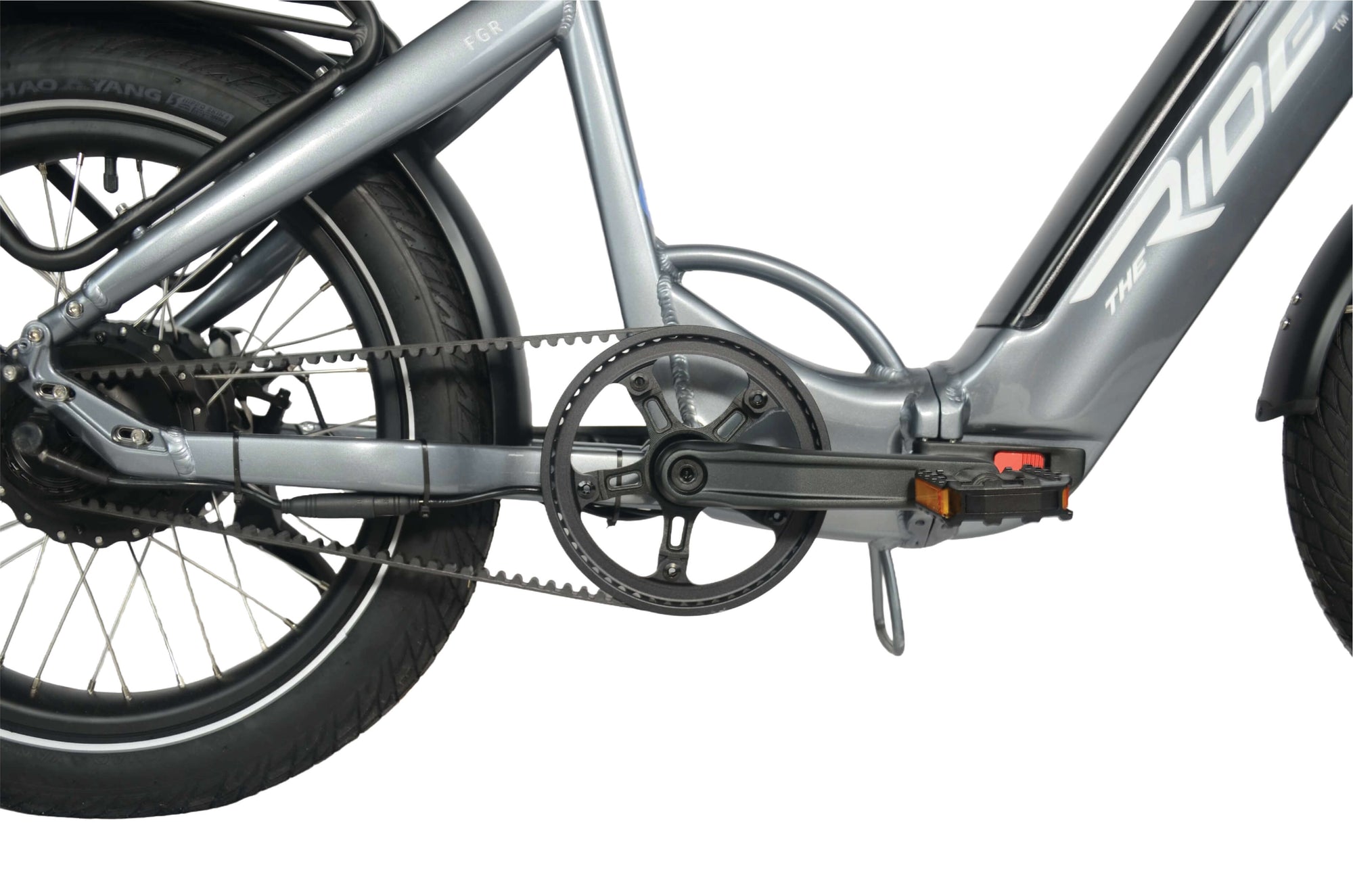

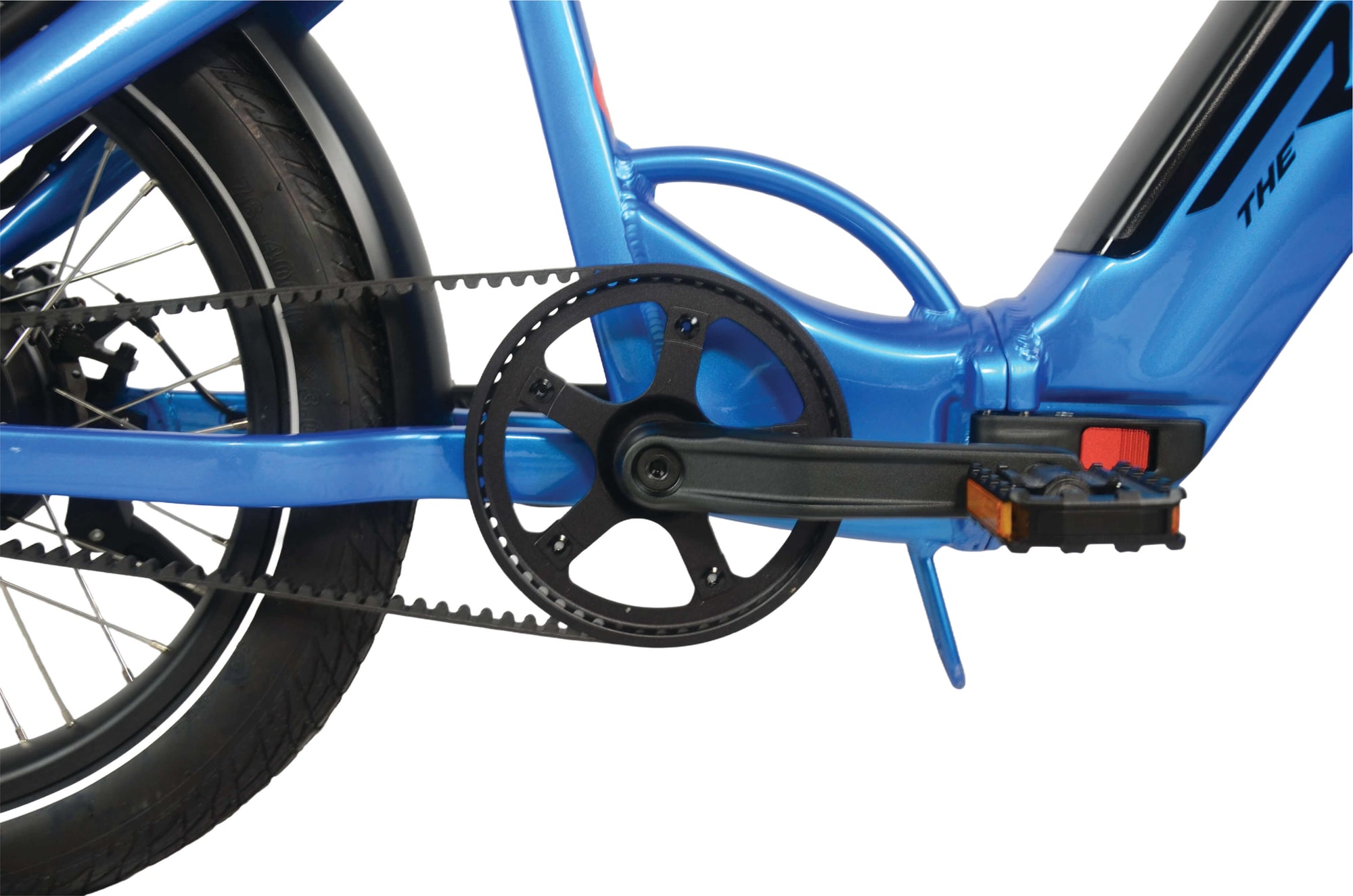

| Belt | Carbon 12mm WELLTRANS, 1221DC |
| Gearing | 48Tx22T, 11mm, CroMo Chain Ring, Alloy Cog, |
| Pedals | PEDALS- eBliss Folding, CroMoly spindle, 9/16" thread, M926F, Matte Black |
| Wheel- Front | 20" x 53mm, 36 hole- eBliss Front Hub, Thru Axel KT-H9TF-eBliss Rim Double Wall 73mm, Black Ano, J45, Stainless Steel Spokes Silver13 Guage Spokes |

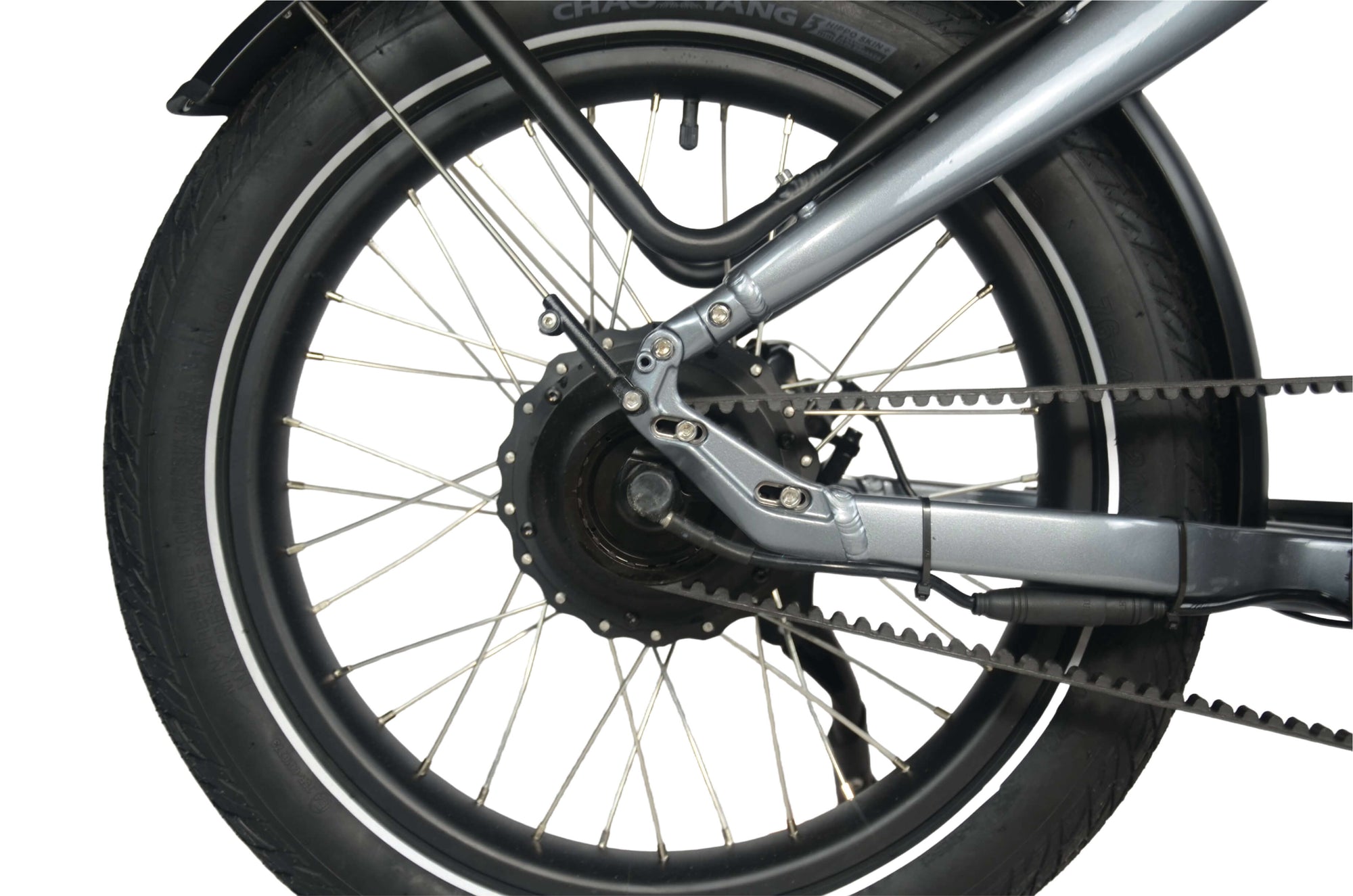

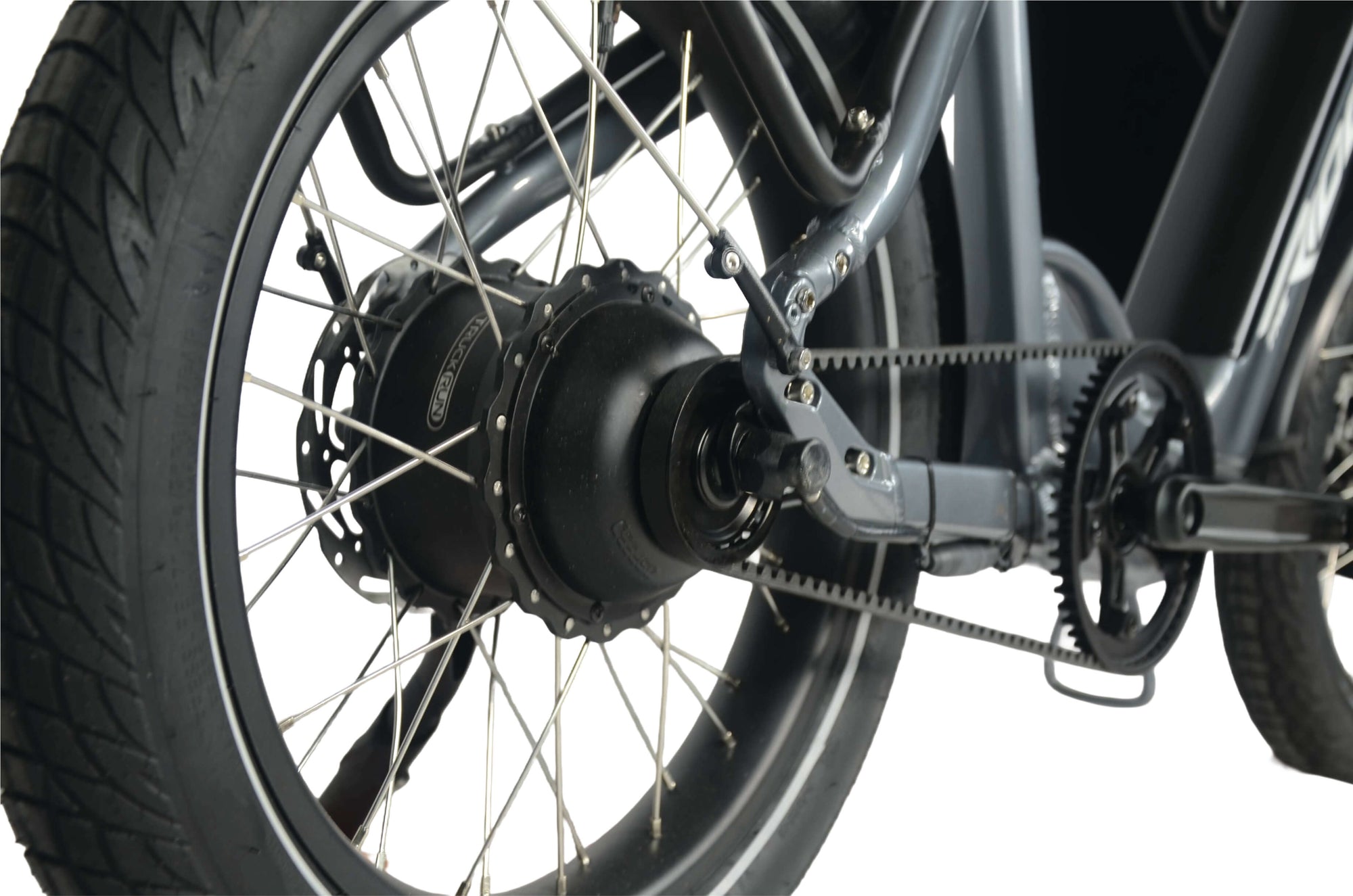

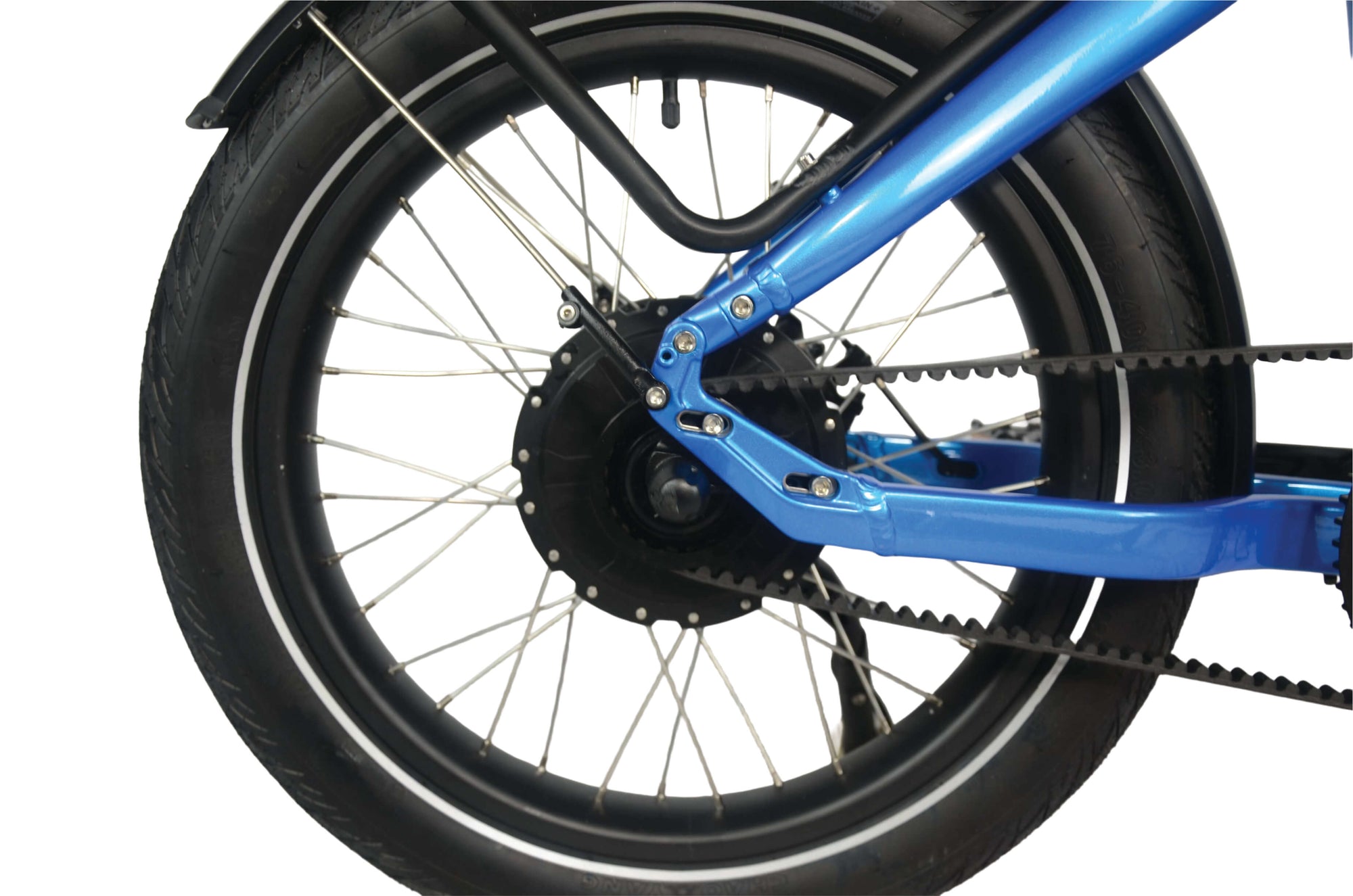

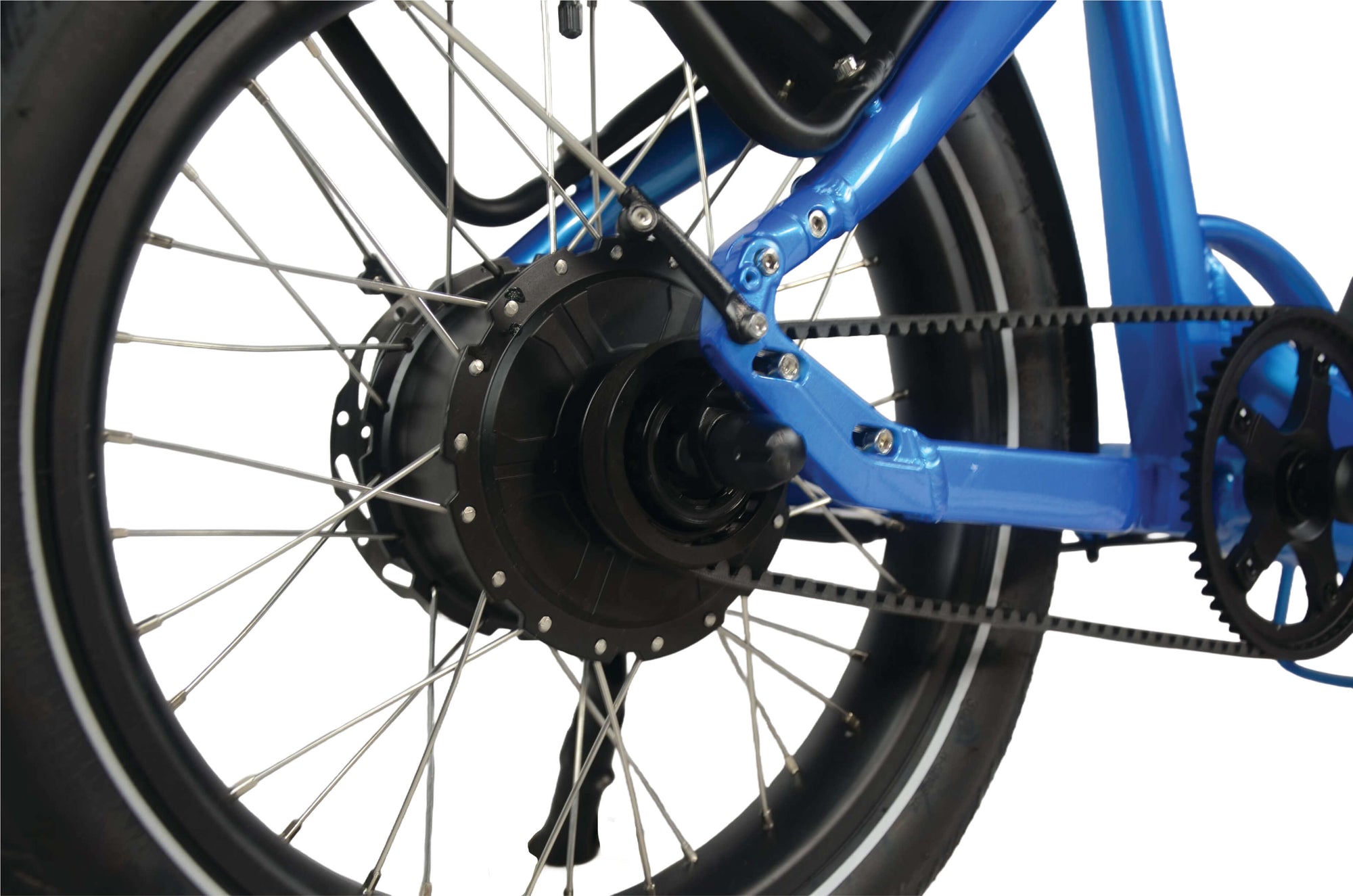

| Wheel- Rear | 20" x 53mm, 36 hole- eBliss 3 Speed CVT Rear Motor 740W, 60Nm, eBliss Rim Double Wall 73mm, Black Ano, J45, Stainless Steel Spokes Silver13 Guage Spokes |
| Tires/Tubes | Urban Tread, 20" x 3.0", E50 Rated, Anti Puncture, w/Reflective Side Walls, Black, SV Tubes |
| Motor | 740W with Max Power 1055W, 77Nm, Speed Ratio 1:5 |
| Controller | eBliss Command, 25A, IPX6, LISHUI, UL2849 Certified |
| HMI/Display | eBliss Class 2 Command- with Regional & Rider Regulatory & Custom Comfort Settings, 5 PAS Levels, IPX6 K-DISP, KD686, 2" TFT, 48V UART |
| Wiring Harness | eBliss Command eBus / Wiring Harness, JULET, 2T5 Waterproof, |
| Throttle | eBliss Command, SU-300X, 3 wire, IPX5 |
| Battery | 48V(46.8V)/16Ah, 3200mA, 65 Cells, UART, Box SYR022, UL2271/2849, includes, wiring to controller, battery connection plates top/bottom, & release |
| Charger | SVE, XVE126, 54.6V/2A, 120W |
| Light- Front | eBliss Command-SU 40LUX, w/Safety Mode and Full Beam, IPX5, 40LUX, DC6-20V, 2W, water proof wire, QD470-4 |

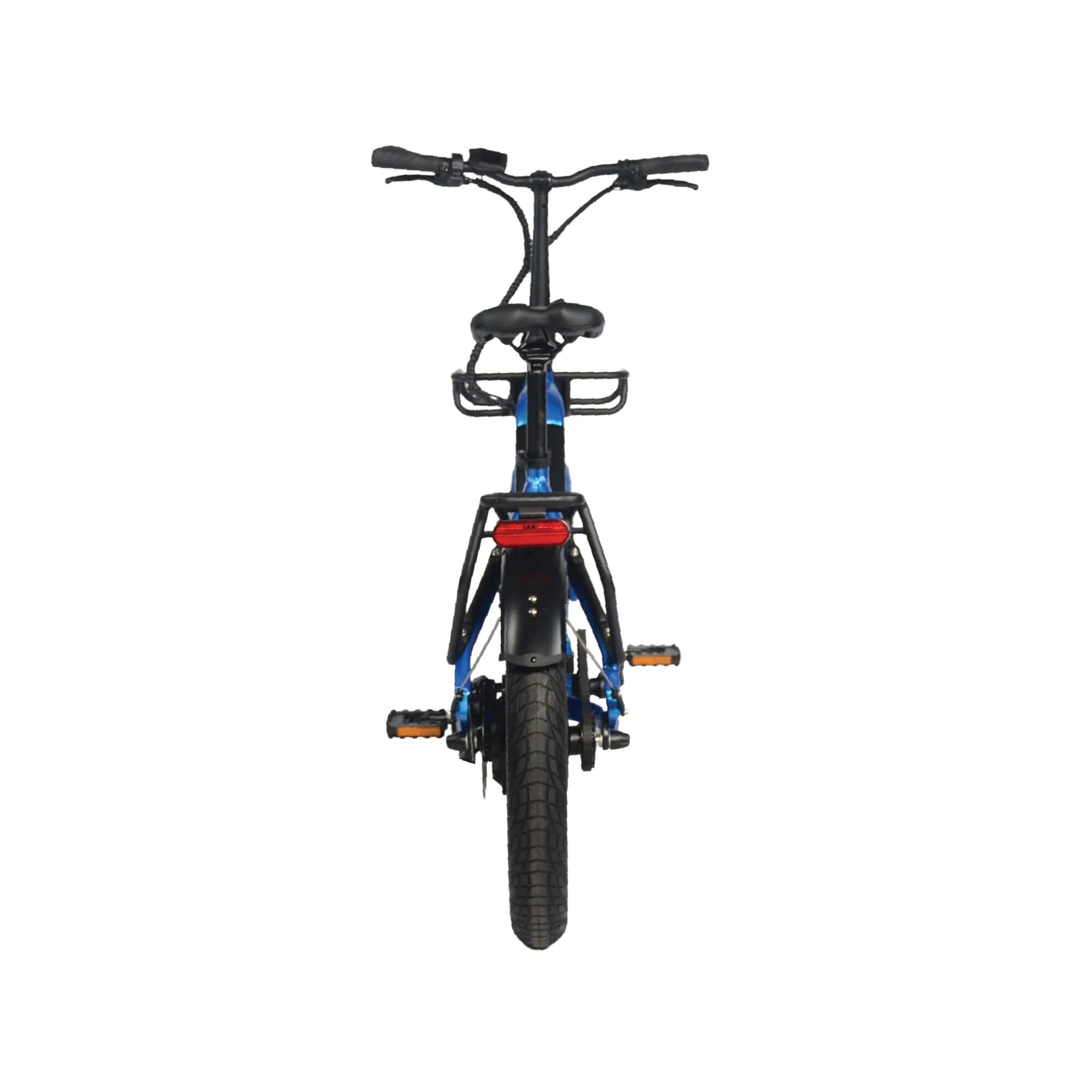

| Light- Rear | eBliss Command- SU-RL- Brake Light enhancement (2.4w), Safety Flash Mode & Full Bean (2w), DC12V-36-48V, Water proof wire 5 pins, IPX5 |
| Turn Signal | UPGRADE OPTION -eBliss Command, SU-DK168, 3 wire, IPX5 |

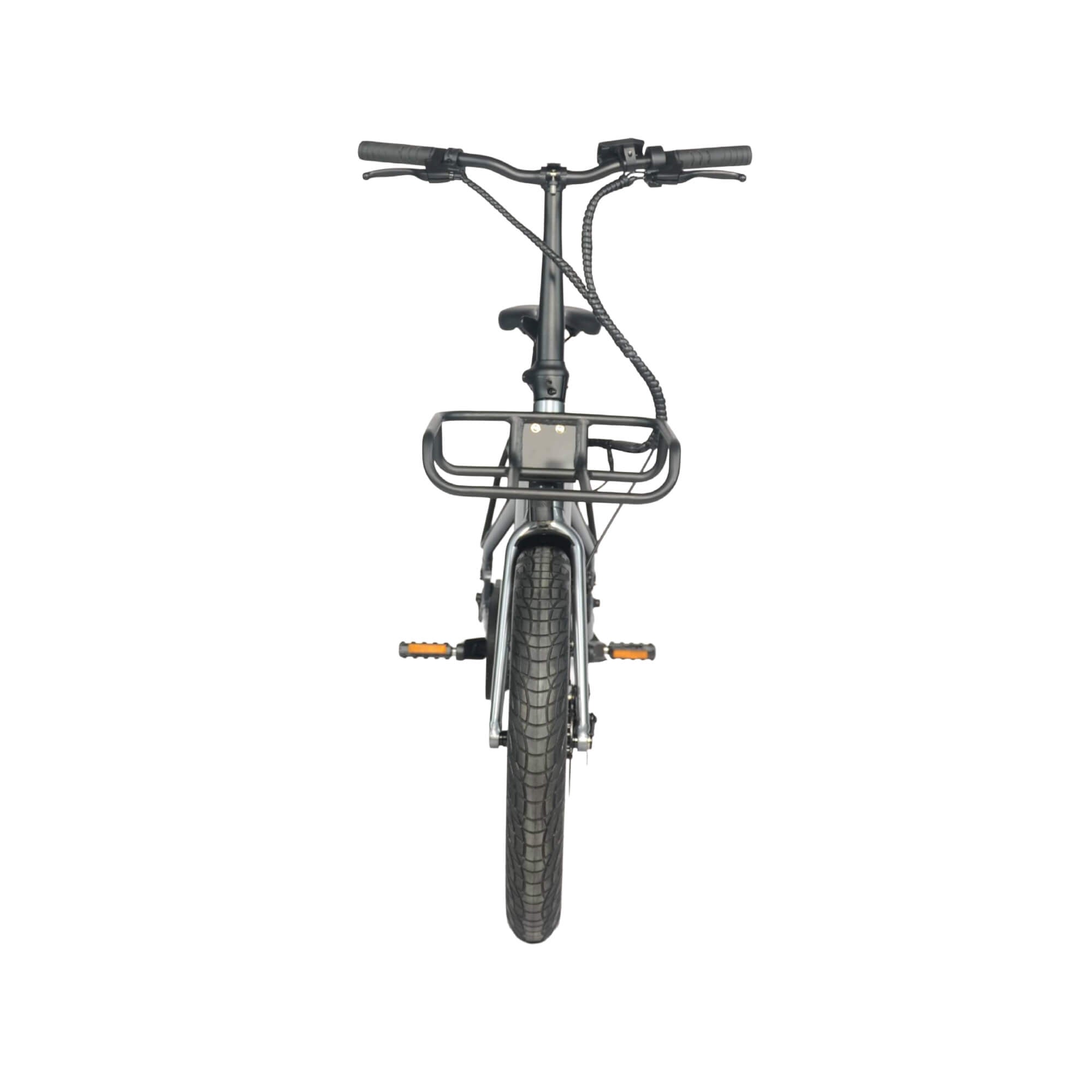

| Rack- Front | eBliss Carry- 15kg limit, MIK & Topeak Bean Compatible, Aluminium, Black, OPTIONAL |
| Rack- Rear | eBliss Carry- 30kg weight limit MIK+ & Topeak Beam Compatible, Aluminum, Black, OPTIONAL |
| Kickstand | eBliss Inside Mount 40mm, 2 bolt, Adjustanble, XHRA-01, Aluminum, Black |
| Fenders- Set (Front/Rear) | eBliss Front & Rear Set, w/Mounting Solid Rod hardware, U-type holder |
| Warranty | 3 Year Real Rider Warranty- Only Exclusion is wear and tear parts- (brake pads, bleeds, tires, tubes, belt) |
| Support | 5 Year Parts Access to Unique Parts from DATE of our LAST SALE |
Mobility means more with the ride
Enjoy the ride – and join the revolution
The right ebike is more than two wheels and a battery—it’s a healthier, happier way to explore your world near and far.
Whether you’re connecting with your community or finding your next adventure, electric mobility is a better choice – but The RIDE is the best choice of all.
• Lower maintenance, higher enjoyment, more style
• Safer, smarter, more intuitive riding experiences across four models
• The pride of US-built bike expertise
